EN545 Ductile cast Iron Pipes

Short Description:

Products Size: DN80-DN2600

National Standard: GB/T13295-2003

International Standard: ISO2531-2009

European Standard: EN545/EN598


Product Detail

Product Tags

Product Description

UK Standard: BS EN545-2002

American Standard: AWWAC 151

South Korean Standard: KSD 4311

Australian Standard: AS 2280

3: EN545/ISO2531/GB/T13295 Ductile Cast Iron Pipe unit weight ,T-type  K8 K9 K10 C Class ,Active Length = 5.7/ 6M.

Product Display

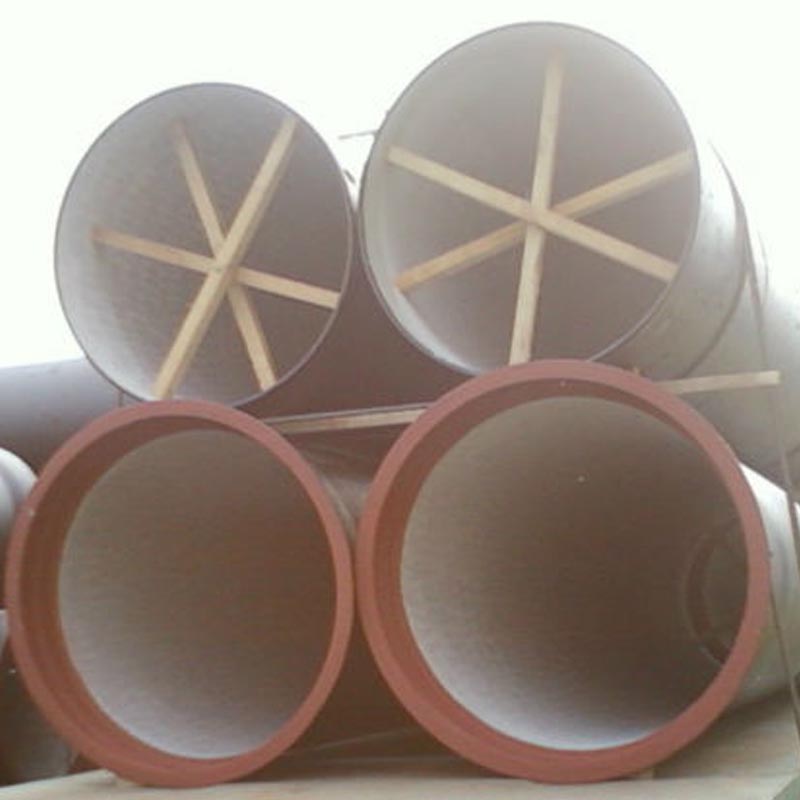

Ductile Iron Pipes1

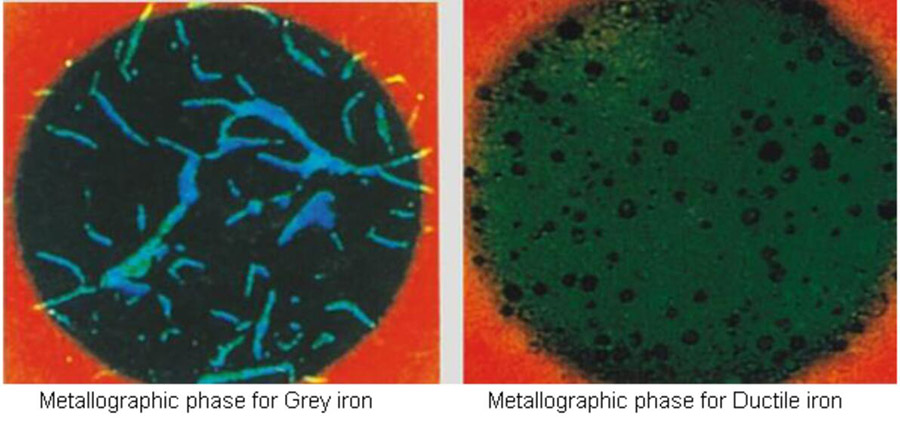

Ductile Iron Pipes2

Product Parameters







 Pipe body weight (kg/m)





(Inside Diameter)

(Outside   Diameter)

Socket Weight

K8

K9

K10

C class

Total weight of Active Length=6M (kg)

Total   weight of Active Length=5.7M (kg)

DN(mm)

OD(mm)

≈ kg

Class

kg/m

K8

K9

K10

C   class

K8

K9

K10

C   class

80

98

3.40

12.20

12.20

12.20

C40

9.10

77.00

77.00

77.00

58.00

73.00

73.00

73.00

55.00

100

118

4.30

14.90

15.10

15.10

C40

11.12

93.70

95.00

95.00

71.00

90.00

91.00

90.00

68.00

125

144

5.70



18.90



C40





119.00













150

170

7.10

21.80

22.80

22.80

C40

16.48

138.00

144.00

144.00

106.00

132.00

138.00

137.00

101.00

200

222

10.30

28.70

30.60

30.60

C40

22.62

183.00

194.00

194.00

146.00

174.00

185.00

185.00

139.00

250

274

14.20

35.60

40.20

44.30

C40

32.63

228.00

255.00

280.00

210.00

218.00

244.00

267.00

200.00

300

326

18.90

45.30

50.80

56.30

C30

43.90

290.00

323.00

357.00

282.00

278.00

309.00

340.00

269.00

350

378

23.70

55.90

63.20

69.60

C30

51.88

359.00

403.00

441.00

335.00

343.00

384.00

420.00

319.00

400

429

29.50

67.30

75.50

83.70

C30

60.78

433.00

482.00

532.00

394.00

414.00

460.00

506.00

376.00

450

480

38.30

80.00

89.30

99.00

C30

73.30

515.00

575.00

632.00

472.00

492.00

550.00

597.00

450.00

500

532

42.80

92.80

104.30

115.60

C30

87.20

600.00

669.00

736.00

566.00

572.00

638.00

702.00

540.00

600

635

59.30

122.00

137.30

152.00

C30

120.62

791.00

882.00

971.00

783.00

755.00

842.00

926.00

747.00

700

738

79.10

155.00

173.90

193.00

C25

142.15

1009.00

1123.00

1237.00

932.00

963.00

1071.00

1179.00

889.00

800

842

102.60

192.00

215.20

239.00

C25

177.07

1255.00

1394.00

1537.00

1165.00

1197.00

1330.00

1465.00

1112.00

900

945

129.60

232.00

260.20

289.00

C25

197.68

1521.00

1691.00

1863.00

1446.00

1452.00

1613.00

1777.00

1257.00

1000

1048

161.30

275.00

309.30

343.20

C25

266.28

1811.00

2017.00

2221.00

1759.00

1729.00

1925.00

2118.00

1679.00

1100

1152

194.70



362.80









2372.00













1200

1255

237.70

374.00

420.10

466.10

C25

373.88

2482.00

2758.00

3034.00

2481.00

2370.00

2632.00

2894.00

2369.00

1400

1462

279.30



547.20









3563.00













Mechanical Property

Mechanical   Property

Nominal   Diameter

Hydraulic test

Tensile strength

Elogation

Yield strength

Bending strength

Brinell hardness

Thickness of cement   lining

DN(MM)

Mpa

Mpa

%

Mpa

Mpa

HB

mm

DN80-DN300

5

≥420

≥10

≥300

≥590

≤230

3

DN350-DN600

4

≥420

≥10

≥300

≥590

≤230

5

DN700-DN1000

3.2

≥420

≥10

≥300

≥590

≤230

6

DN1100-DN1600

2.5

≥420

≥7

≥300

≥590

≤230

…..

Coating

Internal coating: High-Aluminum cement(HAC) or Portland cement or Sulphate-resistance cement(SRC) or Epoxy resin or Epoxy powder etc…  as per ISO4179 standard.

External coating: Zinc spraying(130g/m2) and bitumen coating(70μm) conform to ISO8179.

Gasket / Sealing Rubber Ring

 Rubber Material

 Scope of using

SBR

 Drinking water pipe lines

NBR

Sewage pipe lines

EPDM

 Drinking water pipe lines in open-air
