Short Description:

Strip Material and Fixed parts: S.S 1.4301/1.4571/1.4510 as per EN10088(AISI304/AISI316/AISI439).

Bolt: Round head screws with hexagon socket with zinc plated.

Sealing rubber/Gasket: EPDM/NBR/SBR.


Product Detail

Product Tags

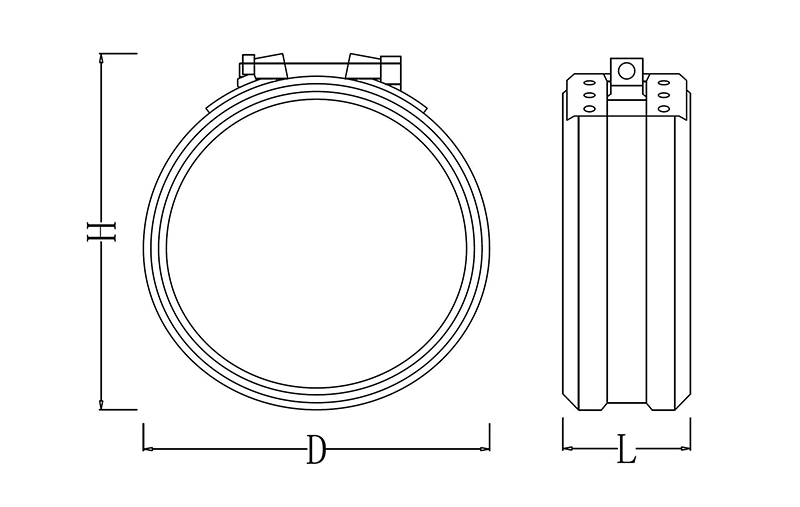

Rapid S.S Couplings(Type-B)

DN ≈D(mm) ≈H(mm) ≈L(mm) Torque(NM) Bolt Bar
50 71 83 42 18.00 M8 5
70 91 103 45 18.00 M8 5
75/80 96 107 47 18.00 M8 5
100 123 135 47 18.00 M8 5
125 152 164 54 18.00 M8 5
150 177 189 54 18.00 M8 5
200 230 244 67 28.00 M10 5
250 290 315 95 30.00 M10 3
300 350 375 95 30.00 M10 3
Coupling And Connectors1

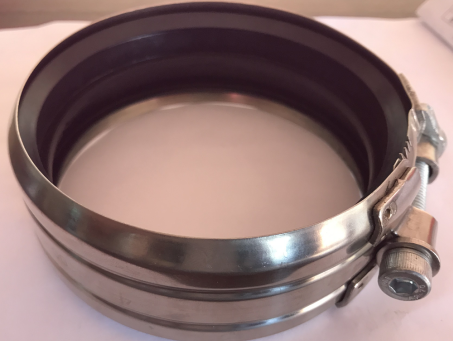

1659059790315

Product Display

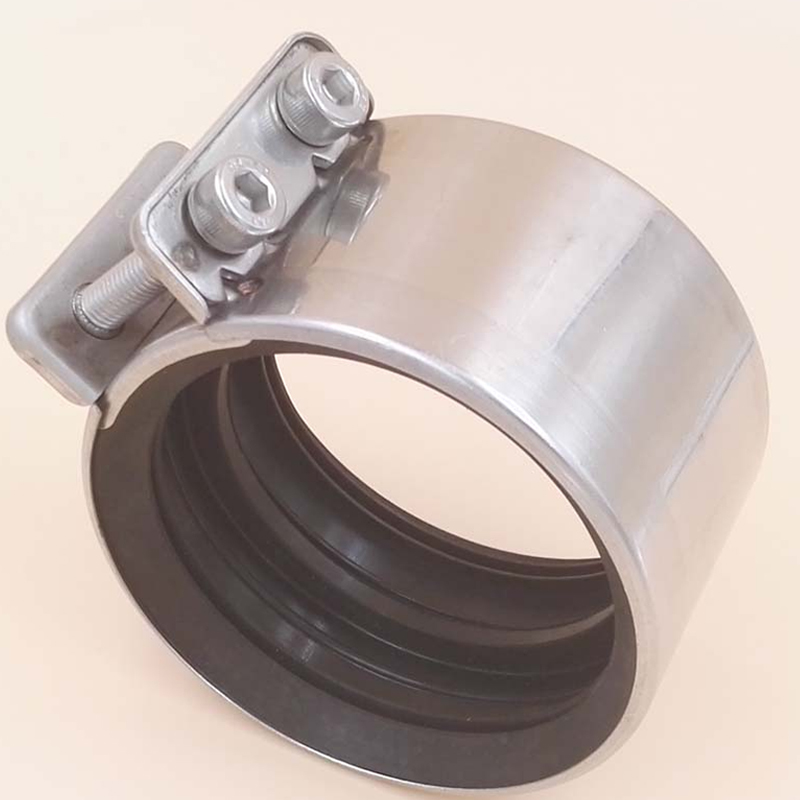

1659059389670

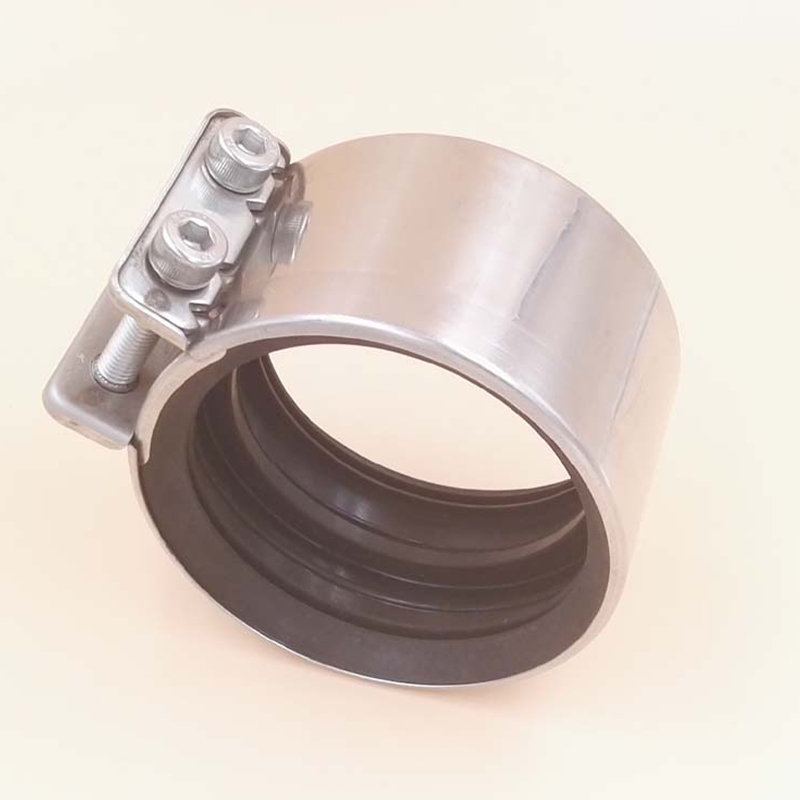

1659059408559

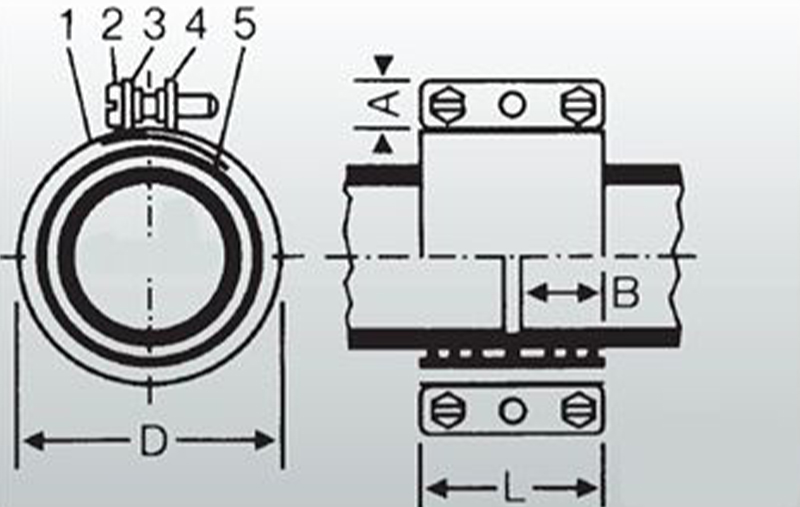

CV S.S -Coupling(Type-C)

Strip Material and Fixed parts: S.S 1.4301/1.4571/1.4510 as per EN10088(AISI304/AISI316/AISI439).

Bolt: Round head screws with hexagon socket with zinc plated.

Sealing rubber/Gasket: EPDM/NBR/SBR.

DN ≈A(mm) ≈B(mm) ≈D(mm) ≈L(mm) Torque(NM) Bolt
50 14 22.5 65 48 6-8 M6
70 14 22.5 65 48 6-8 M6
75/80 14 22.5 88 48 6-8 M6
100 18 22.5 115 54 10-12 M8
125 18 31 140 65 10-12 M8
150 18 31 170 65 10-12 M8
200 18 37 220 78 15-20 M8
250 18 37 286 78 15-20 M10
300 18 37 338 78 15-20 M10
Coupling And Connectors2

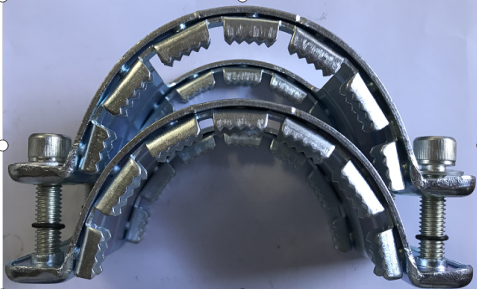

1659059811428

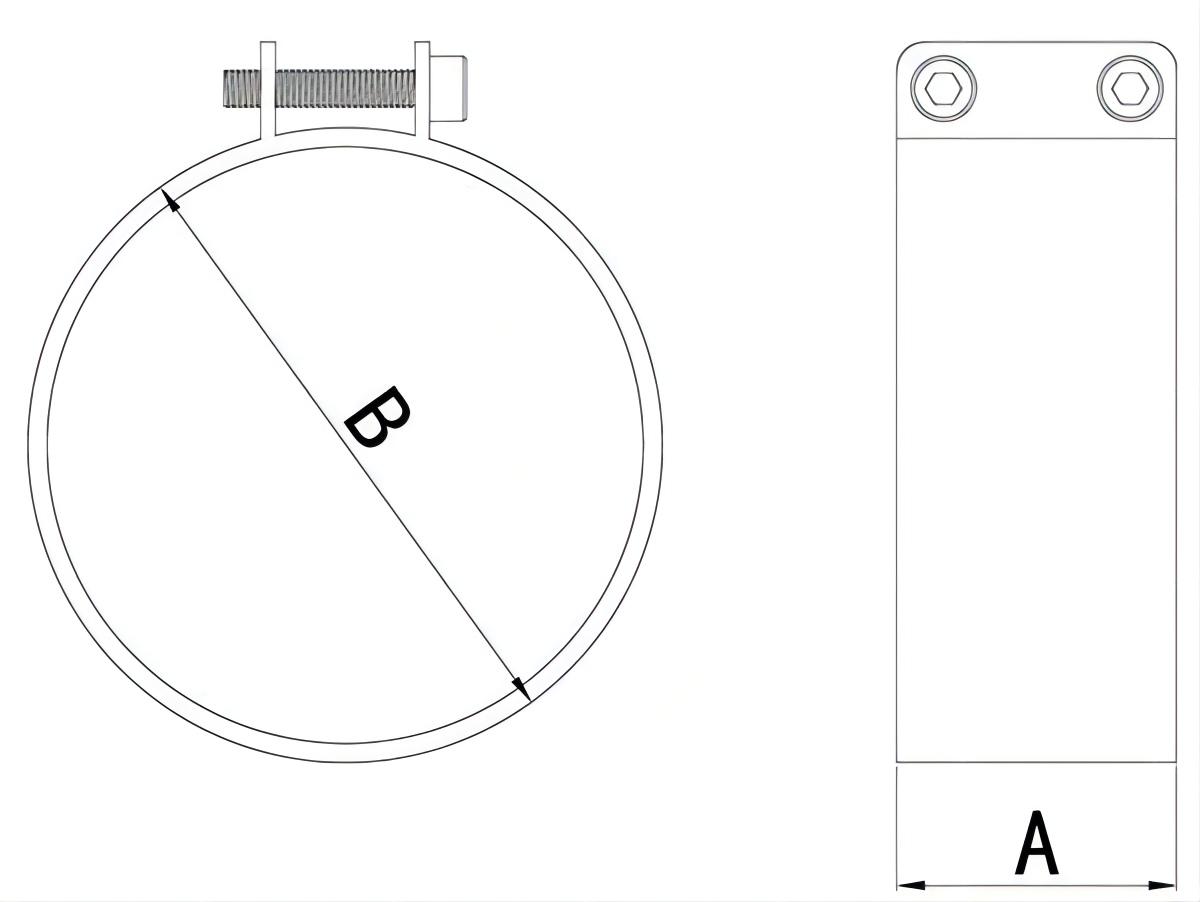

CHA S.S Coupling

Strip Material and Fixed parts: S.S 1.4301/1.4571/1.4510 as per EN10088(AISI304/AISI316/AISI439).

Bolt: Round head screws with hexagon socket with zinc plated.

Sealing rubber/Gasket: EPDM/NBR/SBR.

DN ≈A(mm) ≈B(mm) Torque(NM) Bolt
50 58 68 6-8 M6
70 58 91 6-8 M6
75/80 58 96 6-8 M6
100 58 120 10-12 M8
125 58 140 10-12 M8
150 72 168 10-12 M8
200 84 226 15-20 M8
250 142 280 15-20 M10
300 142 350 15-20 M10
Coupling And Connectors3
