WRY High Temperature Thermal Air Cooler Hot Oil Pump for Crude Waste Oil Temperature 350 Degree

Short Description:

WRY series hot oil pump has been widely used in heat carrier heating system. It has entered various industrial fields such as petroleum, chemical industry, rubber, plastics, pharmacy, textile, printing and dyeing, road construction and food. It is mainly used to transport weakly corrosive high-temperature liquid without solid particles. The service temperature is ≤ 350 ℃.


Product Detail

Product Tags

Product Description

WRY series hot oil pump has been widely used in heat carrier heating system. It has entered various industrial fields such as petroleum, chemical industry, rubber, plastics, pharmacy, textile, printing and dyeing, road construction and food. It is mainly used to transport weakly corrosive high-temperature liquid without solid particles. The service temperature is ≤ 350 ℃. It is an ideal hot oil circulating pump.

WRY series hot oil pump is the second generation product developed by our factory on the basis of digesting and absorbing foreign oil pumps. The basic structure is a single-stage single suction cantilever foot support structure. The inlet of the pump is axial suction, the outlet is centered and vertically upward, and is installed on the base together with the motor.

WRY series hot oil pump is supported by double end ball bearing. The front end is lubricated by lubricating oil, the rear end is lubricated by grease, and there is an oil guide pipe in the middle to observe the sealing condition and recover the heat transfer oil at any time.
The natural heat dissipation structure changes the traditional water cooling structure, which has the advantages of simple structure, small volume, saving operation cost, good performance and reliable use.

WRY series hot oil pump:
(1) it adopts the combination of stuffing sealing and mechanical sealing. The stuffing sealing uses high-temperature resistant stuffing with good thermal adaptability, while the mechanical seal uses cemented carbide materials with high mechanical strength and good wear resistance to ensure the sealing performance at high temperature.
(2) The third generation polytetrafluoroethylene (PTFE) is used as lip sealing, which makes a leap in sealing performance, improves the reliability by 25 times compared with rubber seal, and has strong corrosion resistance.

Product Display

WRY-HOT OIL PUMP-4

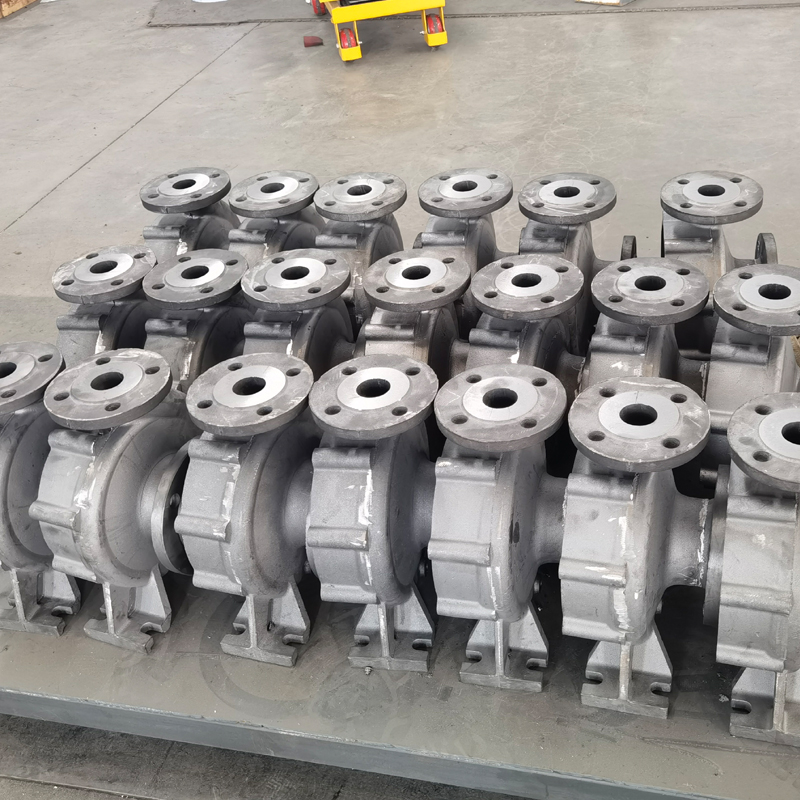

WRY-HOT OIL PUMP-3

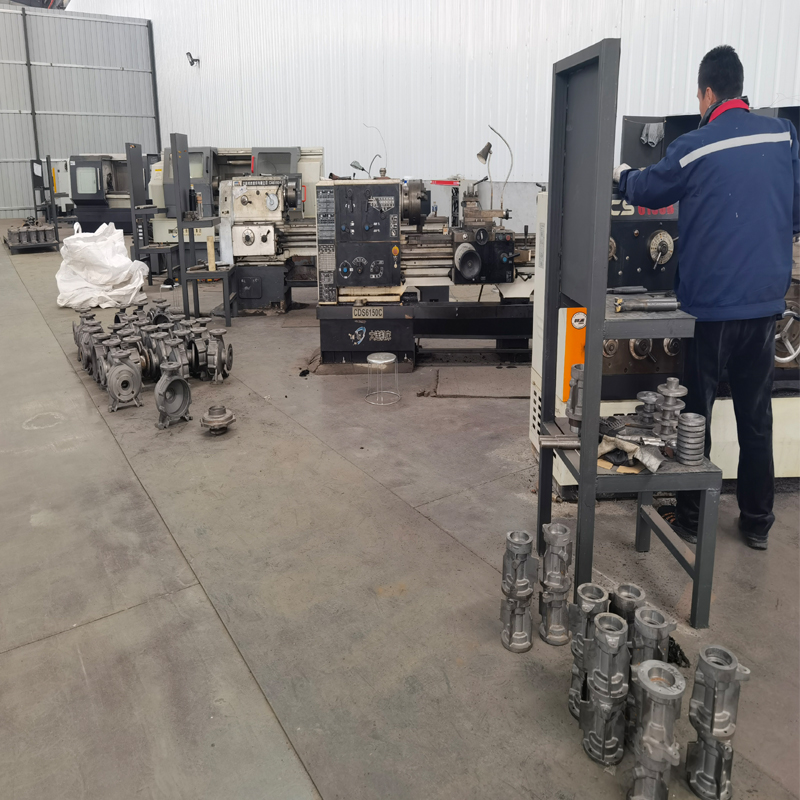

WRY-HOT OIL PUMP-2

WRY- Hot Oil Pump: Technical Data Sheet

1. Pump housing; 2. Pump cover; 3. Pump impeller; 4. Pump shaft; 5. Sealing ring; 6. Impeller nuts; 7. Stopper gasket; 8. Shaft sleeve; 9. Stuffing lid; 10, Stuffing ring; 11. Stuffing; 12. Cantilever shaft parts;

Model WRY

Flow m³/h

Lifting m

Revolution rate r/min

Power KW

Efficiency n%

Residual of gaseous cavitation NPSH m

Power of axis

Equipped power

26-20-100

4.5

15

2825

0.45

0.75

40

0.8

50-32-150

8

22

2840

1

1.5

42

1.1

50-32-160

10

25

2840

1.5

2.2

42

1.2

65-40-160

12.5

25

2880

2.5

3

45

1.2

50-50-170

12.5

32

2890

3.2

4

45

1.2

50-50-150

24

18

2890

3.2

4

46

1.2

65-40-190

18

40

2900

4.5

5.5

52

1.4

65-50-180

32

32

2900

4.5

5.5

52

1.7

65-50-170

40

25

2900

4.5

5.5

52

1.8

65-40-200

25

50

2900

6.7

7.5

53

1.6

80-50-180

40

40

2900

6.7

7.5

63

1.8

80-50-170

60

20

2900

6.7

7.5

63

2.8

 100-65-190

60

38

2930

9.2

11

68

2.6

 100-65-200

80

40

2930

12.5

15

70

3.1

 100-65-220

58

50

2930

12.5

15

68

2.4

 100-65-210

90

45

2930

15.7

18.5

70

3.4

 100-65-235

58

60

2930

15.5

18.5

62

2.3

 100-65-230

100

55

2940

19.5

22

70

3.6

   125-100-190

155

30

2940

17.6

22

72

5.6

 100-65-240

100

70

2950

25.5

30

69.8

3.5

 100-65-257

100

80

2950

32.5

37

67

3.5

   125-100-220

160

45

2950

25.5

37

75

3.5

 125-80-250

160

60

2970

35.5

45

74

5

 125-80-270

150

85

2970

46

55

73

4.7

   125-100-250

200

60

2970

42.8

55

76.8

6

   125-100-257

260

70

2970

64.3

75

77

7.4

   125-100-265

200

80

2970

59

75

74

5.8

   125-100-260

300

70

2970

75.3

90

78.2

8

   125-100-270

220

85

2970

68

90

76

6

   150-125-250

350

60

2970

75.2

90

76

9

   150-125-240

400

50

2970

72

90

76

10.5

     150-125-270Y

340

76

2970

89.5

110

78.6

8.5

     150-125-250Y

400

60

2970

88

110

74

9.8

     150-125-280Y

400

78

2970

106

132

80.6

9.8

     150-125-285Y

370

85

2970

106

132

80

9.5
